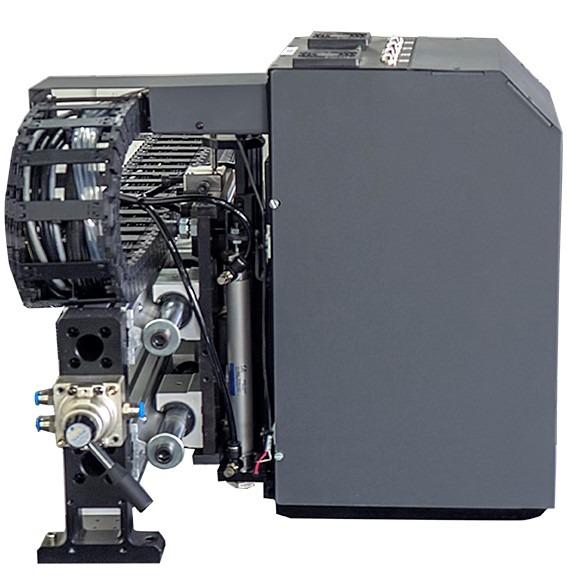

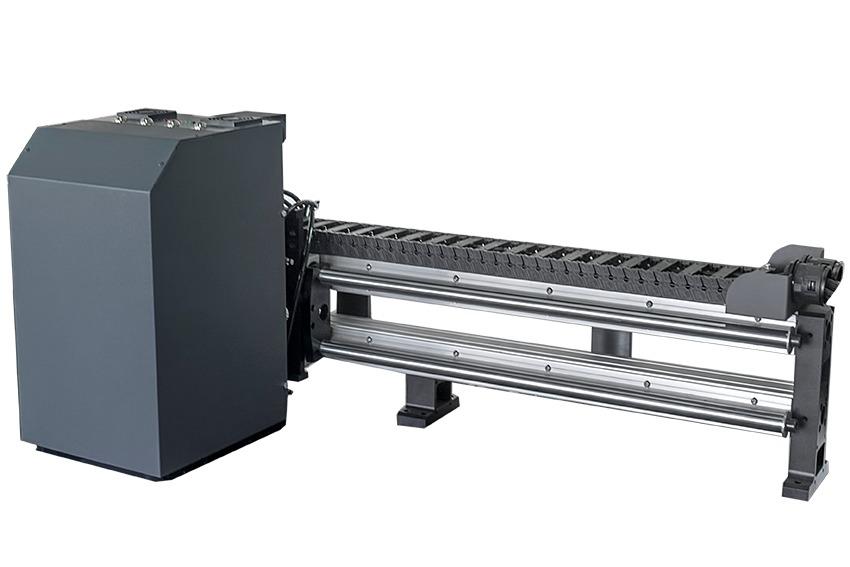

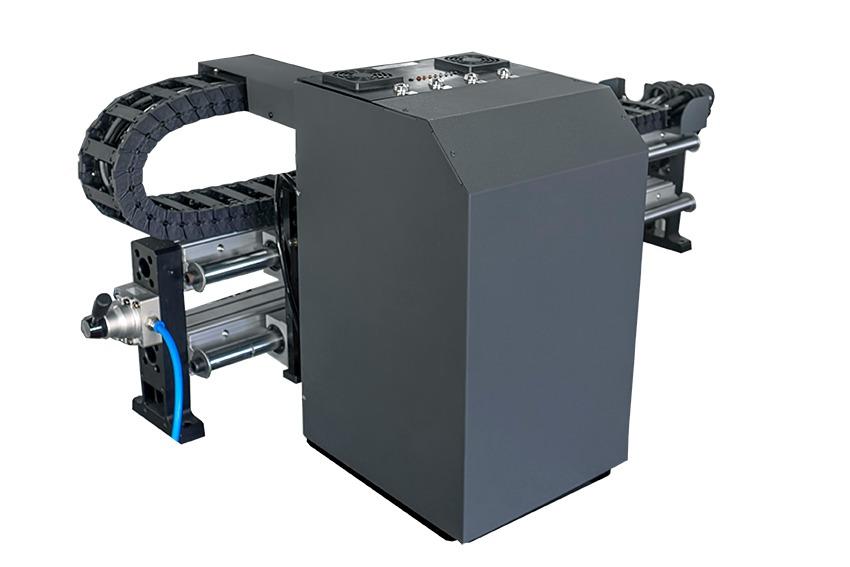

Venus C54 CMYK UV System

High performance full-color inkjet UV inkjet system for variable data and short-run printing application with 54 mm printing width.

Utilizing Ricoh print head, piezo inkjet print head technology, Venus Color meets the increasing and rigorous demands for printing barcodes, serial numbers, dates, logos, full color images, times, and text on coated, un-coated substrates and PVC cards like CR80 cards.
Venus Color is suitable for web printing, sheet-fed printing, and both online and offline targeted marking printing. The modular design offers greater flexibility to combine the Venus Color with different technologies, such as feeding, UV curing, camera inspection, or host PC.
Venus Color prints clear and sharp edges at the high resolution of 600X600dpi. Text as small as 7pt is perfectly legible.

Supported fonts and barcodes:

  • Single-line, multi-line, numeric codes, time, and serial numbers
    Character, True Type, Type-1 support
  • 1-D Barcodes include EAN-13, EAN-8, Code 39, Code 128, Codabar, GS1 DataBar-14, IATA 2 of 5, interleaved 2 of 5, JAN-13, UPC-A, POSTNET
  • 2-D Barcodes include PDF417 and QR Code
  • Full Color variable imaging and variable printing

Venus Color inkjet printing system includes:

  • Data Imaging Board
  • Printing Control Cabinet

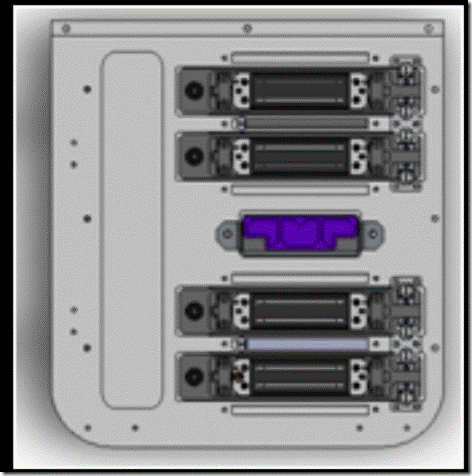

  • CMYK Print Head Module*
  • Aluminum mounting cross frame (Optional)
  • MagicPage VDP Software/ MagicPRINT PDF Software (Optional)
  • NuviPRINT RIP Software (Optional)
  • Professional Printer Control Software (PCS Pro)
    * Customized versions are available, including different print widths, number of colors, and print resolution. Please contact us to discuss your requirements
  • Envelopes
  • Security Printing
  • Labels
  • Packaging
  • Tickets
  • Plastic Cards
  • Lottery/ Bingo

NuviPRINT is professional RIP software designed and developed for industrial inkjet printing applications. NuviPRINT offers fast RIP speed, reliable & efficient job printing production, and streamlined workflow. Users can easily obtain smooth gradient, vivid images and sharp small size text with its advanced RIP technology. ICC color management workflow ensures vivid and brilliant colors. NuviPRINT is available in NuviPRINT PS and NuviPRINT Server to satisfy the demands of medium-scaled and large-scaled users respectively.
